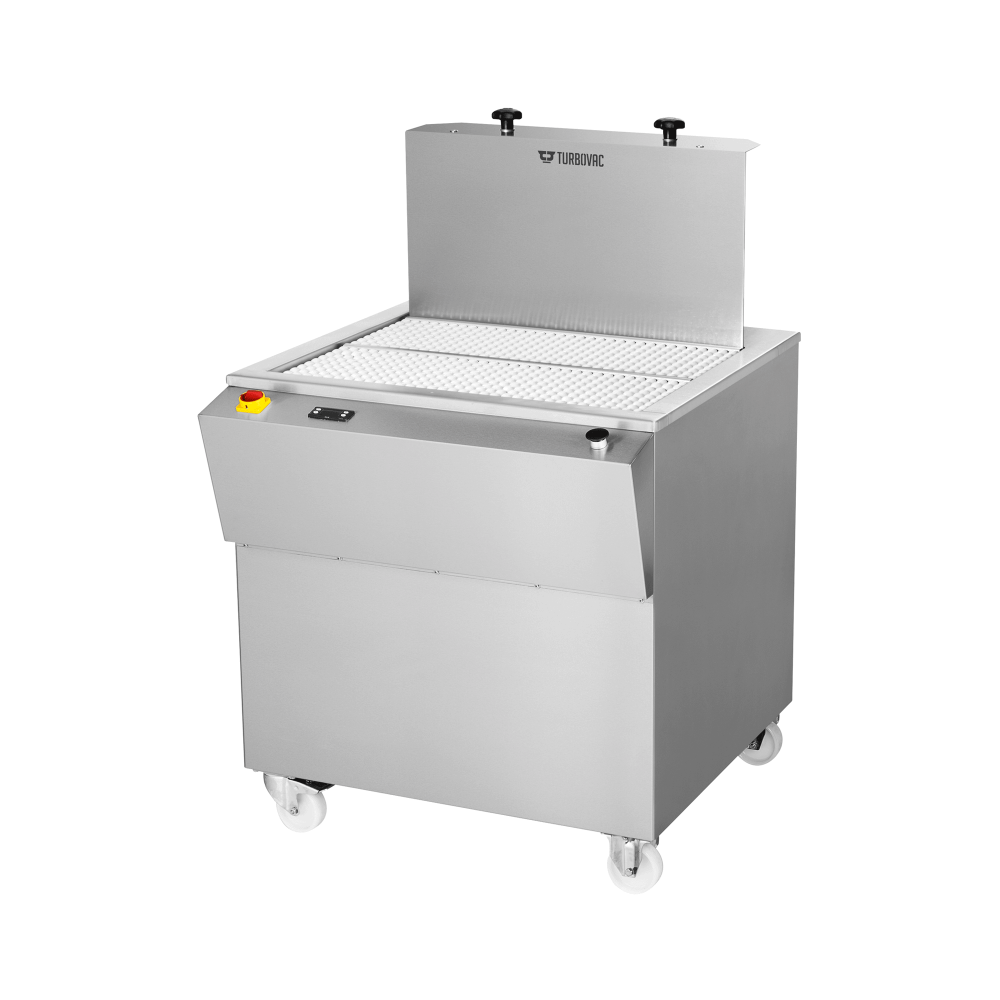

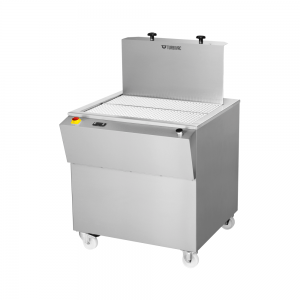

Turbovac TV40/60 Shrink Tank – New Style

The New Style Turbovac TV40/60 dip tank machine is built from stainless steel to Turbovac’s usual high quality.

The dip tank has a capacity of 70 litres with the platform holding a maximum of 20kg in load at any one time.

As standard the machine comes without the white rollers on the platform but these are available as an optional extra.

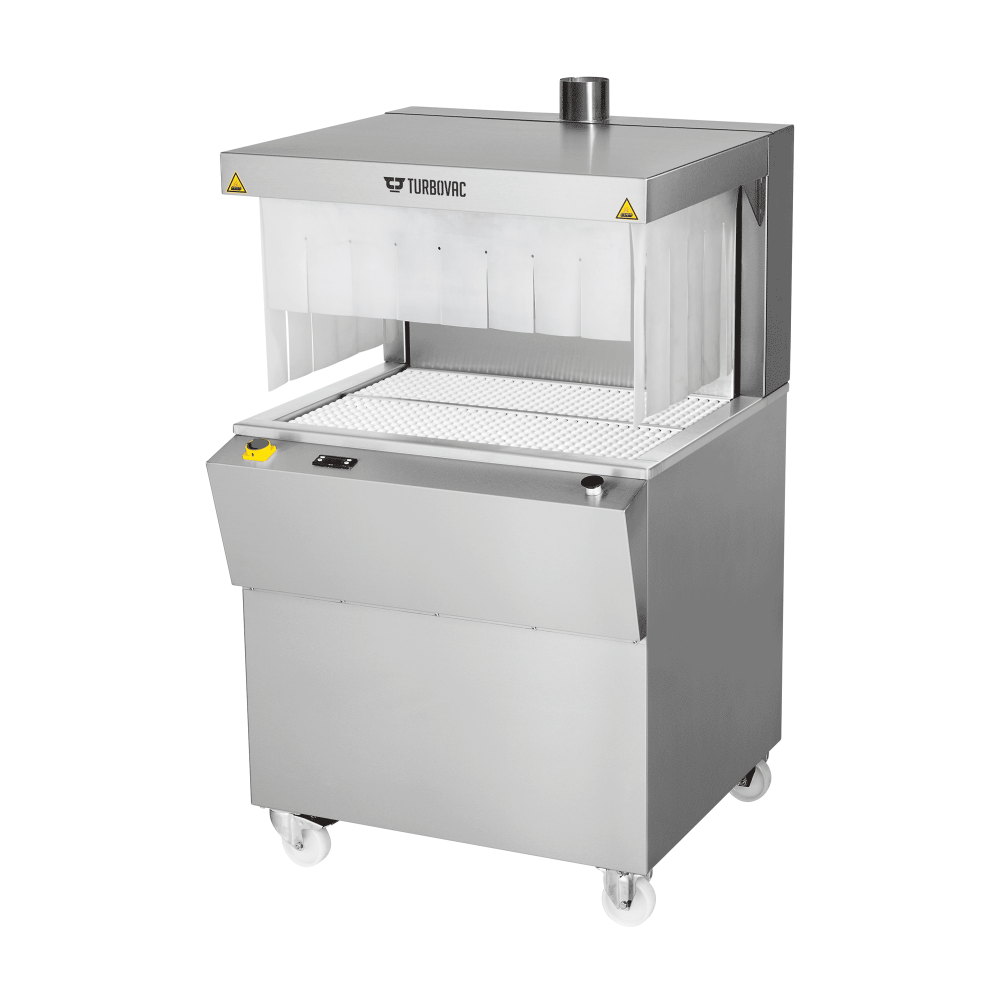

The newly designed TV40/60 diptank also comes with the optional extra of adding an exhaust hood with side flaps, to help take the steam away from the diptank and out of the room it is being used in, ideally suited to customer using the diptank in a small room.

• External Dimensions (WxDxH) 700x620x1550mm
• Platform Dimensions (WXD) 570x400mm
• Dipping length 300mm
• Max product height 250mm
• Max Water Capacity 70 litres
• Maximum Product Weight 20kg
• Voltage 400V-3-50Hz
• Power 2 x 4.5kW
• Weight 105kg
