Turbovac TV 55/75 Shrink Tank – New Style

Regular Price: £6,355.00 + VAT

Sale Price : £4,960.00 + VAT

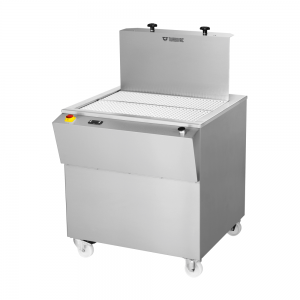

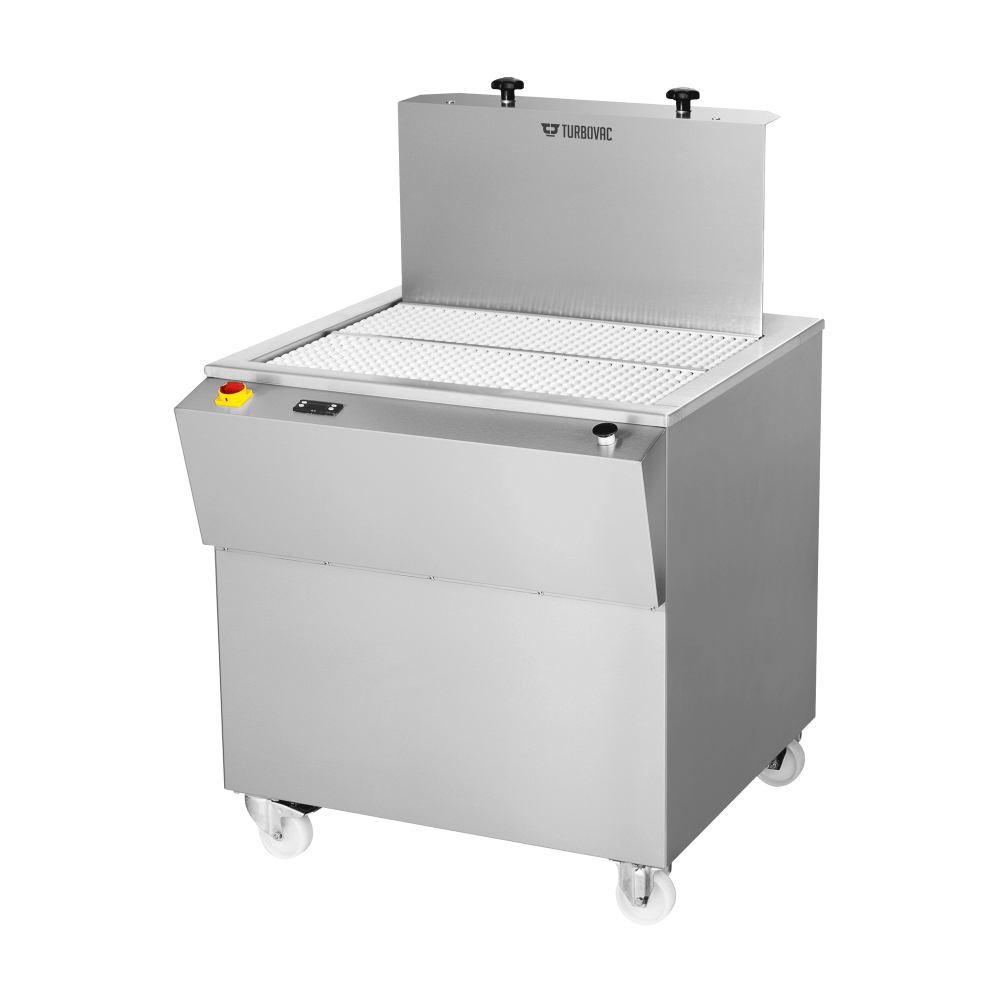

The New Style Turbovac TV55/75 dip tank is the biggest dip tank machine we sell and has a capacity of 140 litres with the platform holding a maximum of 30kg in load at any one time. Suitable for commercial use and extremely easy to use.

The dip tank is made from stainless steel to Turbovac’s usual high standards, with IP65 rated switches and control panel.

As standard the machine comes without the white rollers on the platform but these are available as an optional extra.

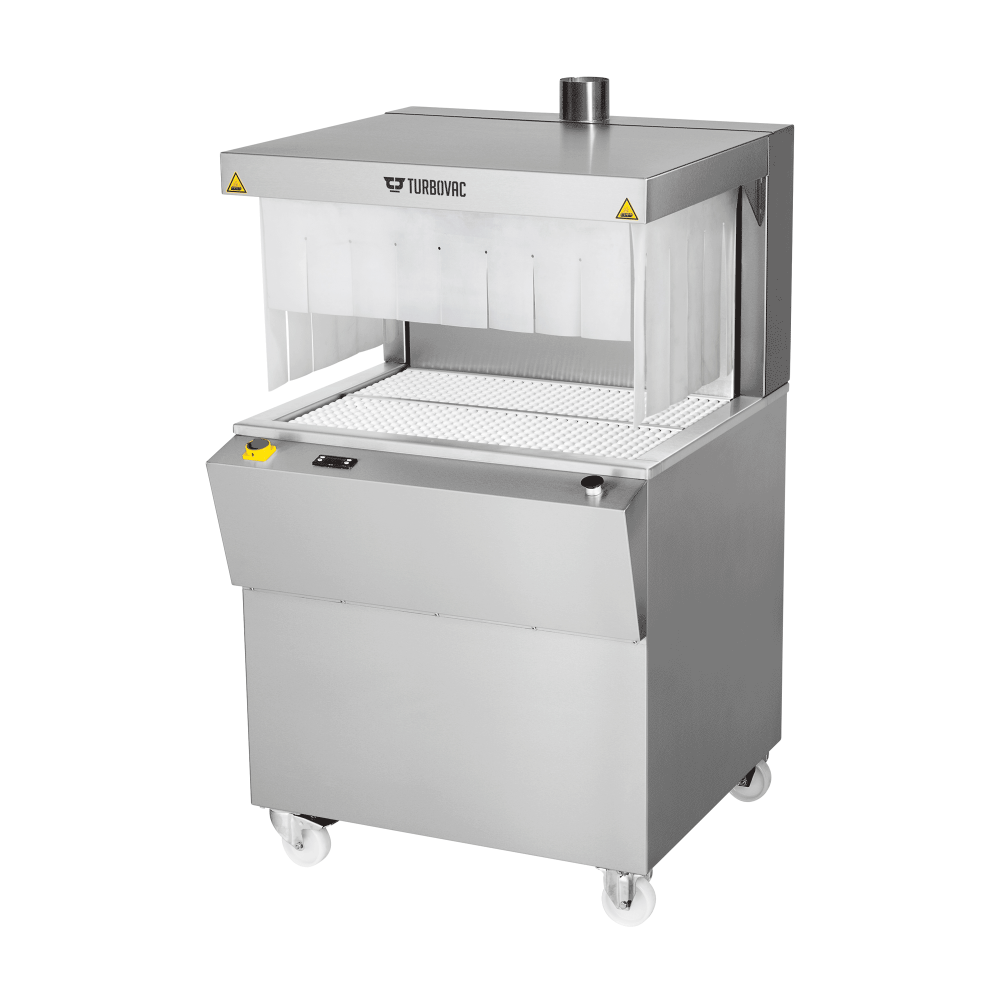

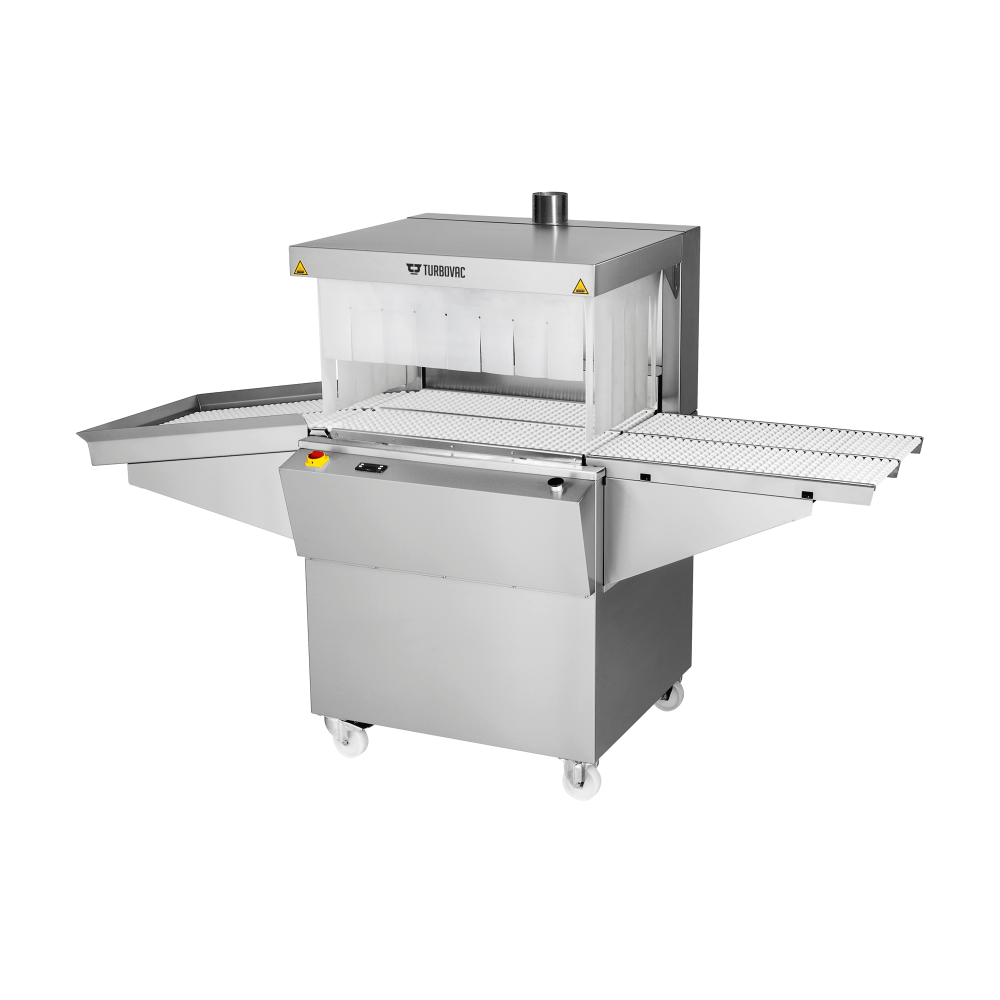

The newly designed TV55/70 dip tank now also comes with the option to add an exhaust hood, to remove excess steam from the machine and the room it is being used in. Another optional extra is to add input and output tables with the rollers on, to help assist the operator in loading and unloading the machine.

  • External Dimensions (WxDxH) 1020x760x1500mm
  • Platform Dimensions (WXD) 730x535mm
  • Dipping Length 300mm
  • Max Product Height 250mm
  • Max Water Capacity 140 litres
  • Maximum Product Weight 30kg
  • Voltage 400-3-50Hz
  • Power 2 x 7.5kW
  • Weight 134kg
